SUMO HP HV2300-6P-L

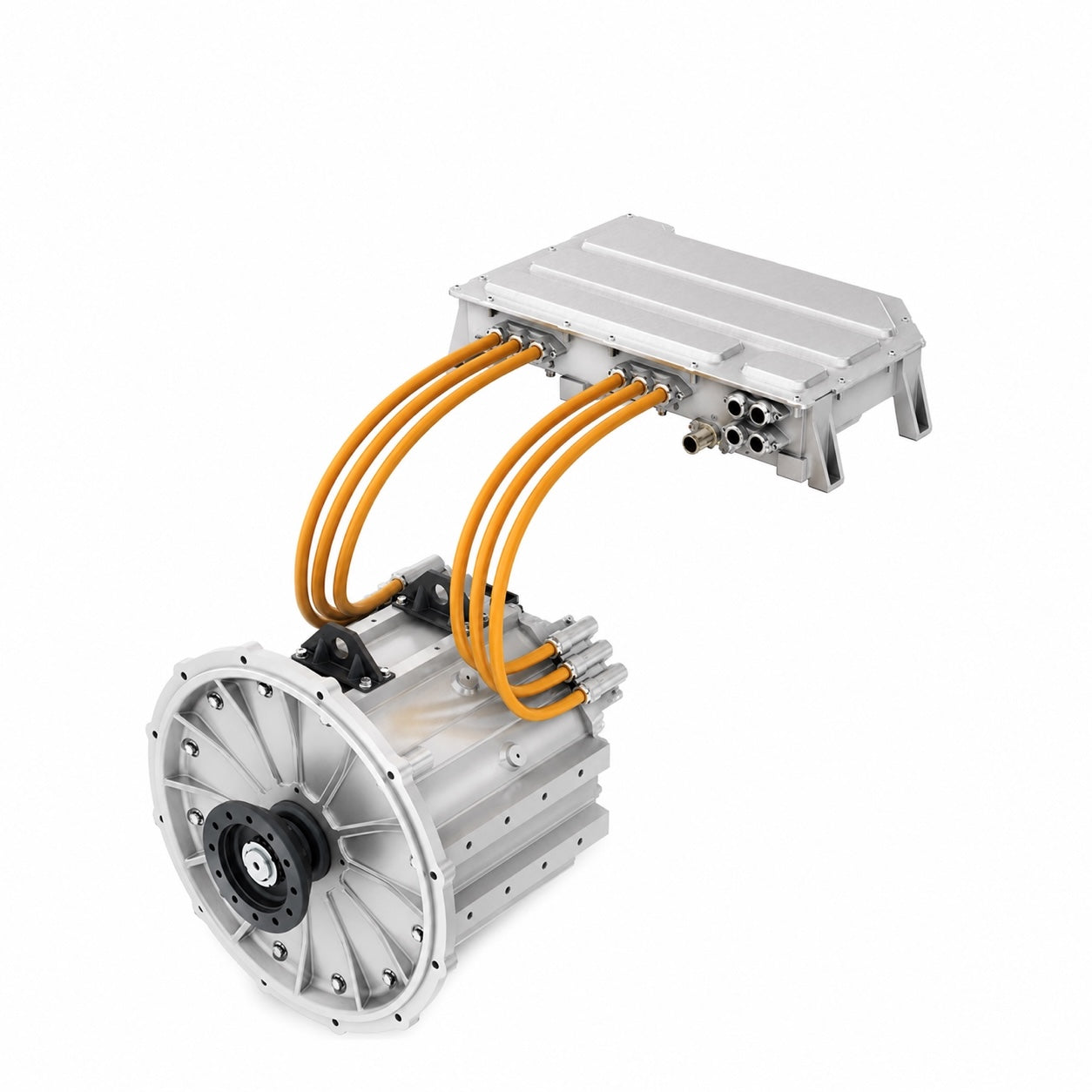

The SUMO HP HV2300-6P-L is a 6-phase motor / inverter system from the TM4 SUMO™ family, designed for high-power applications. It pairs a high torque / low speed permanent magnet motor with a matched CO200 high-voltage inverter, with seamless integration into e-Transmissions and e-Axles for high-power applications. Built to IP67 / IP6K9K protection and validated against GMW3172 sprung-mass shock and vibration standards, it delivers up to 500 kW peak power and 2330 Nm peak torque in a rugged, automotive-grade package.

At its core is a proven permanent magnet motor matched to a CO200 6-phase high-voltage inverter rated for a 300–800 Vdc operating range, continuous output of 395 kW and 1745 Nm, and a maximum operating speed of 4500 RPM. This configuration is part of the latest 800 V system range, adding Quick Connect with HVIL for safe and easy installation or maintenance and an extended performance envelope. The broader SUMO HP series spans several power and torque configurations, so the per-system ratings below define exactly what this variant delivers.

The SUMO HP HV2300-6P-L is an electric powertrain dedicated to high-power applications, with seamless integration into e-Transmissions and e-Axles, removing driveline complexity at the vehicle level and easing packaging in high-power applications and similar platforms. A Quick Connect option with HVIL and a range of male and female spline interfaces simplify mechanical and high-voltage integration.

• System: SUMO HP HV2300-6P-L (latest 800 V system)
• Type: 6-phase permanent magnet motor / inverter system
• Inverter: CO200
• Peak Power: 500 kW
• Continuous Power: 395 kW
• Peak Torque: 2330 Nm
• Continuous Torque: 1745 Nm
• Max Operating Speed: 4500 RPM
• Voltage Range: 300–800 Vdc
• Motor Features:
  • Proven permanent magnet technology for optimal efficiency
  • Low electro-magnetic audible noise
  • Low-cogging and ripple torque for better NVH
  • Four-quadrant operation
  • Thermal protection
  • Quick Connect option with HVIL for safe and easy installation or maintenance
  • Range of male and female spline interfaces available
• Inverter Features:
  • 3-phase or 6-phase high-voltage inverter
  • Variable switching frequency
  • Reflex™ gate driver technology for high power and current densities
  • EMI Filter
  • Best-in-class power density
  • High efficiency
  • Quick Connect option with HVIL for safe and easy installation or maintenance
• Standards & Environmental:
  • System protection: IP67 / IP6K9K
  • Automotive components: AEC-Q100 / AEC-Q101 / AEC-Q200
  • Electromagnetic compatibility (EMC): Main automotive international standards
  • Shock and vibration: GMW3172 Sprung masses
  • Max coolant inlet temperature: 65°C
  • Coolant type: 40/60 water-glycol
  • Toxic materials and flammability: ROHS, ELV, UL94-V0
  • External corrosion resistance: Salt mist, chemical products
• Note: Ratings measured at 600 Vdc, 45°C / *650 Vdc, 45°C. Specifications are subject to change.
